Our intelligent body segmental analyzer instrument hardware and software solutions meet the diverse needs of various industries, including fitness centers, yoga/Pilates studios, children’s fitness programs, schools, beauty salons, medical institutions, military/police units, government agencies, and businesses. We provide comprehensive health monitoring and data services, including body composition analysis, fitness assessment, body shape assessment, and body circumference measurement. Our mission is to improve national health management standards and enhance public health. “More comprehensive assessment, richer data, higher accuracy”—Livafit Technology redefines machine learning for human health through its intelligent body segmental analyzer. Our products help organizations efficiently and in real-time identify their clients’ true needs, thereby enabling global digital health solutions.

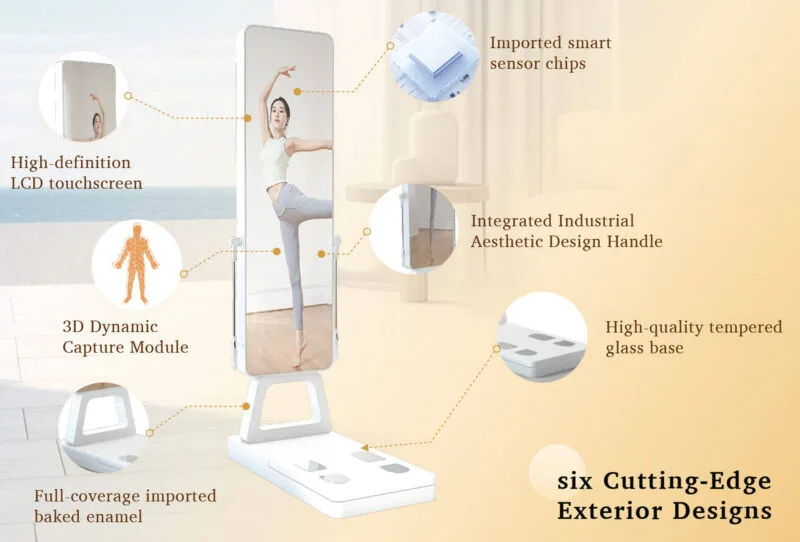

AI 3D Posture Intelligent Recognition System–A deep learning-driven 3D posture perception module captures real-time changes in body structure, intelligently assessing shoulder balance, spinal tilt, pelvic rotation, and lower limb alignment, providing more scientific posture and health recommendations.
Multi-dimensional Body Composition Precise Analysis– Based on an advanced impedance analysis model and a large-scale Asian body type database, the algorithm provides highly reliable measurement results for multiple indicators such as fat, muscle, water, and bone mass.

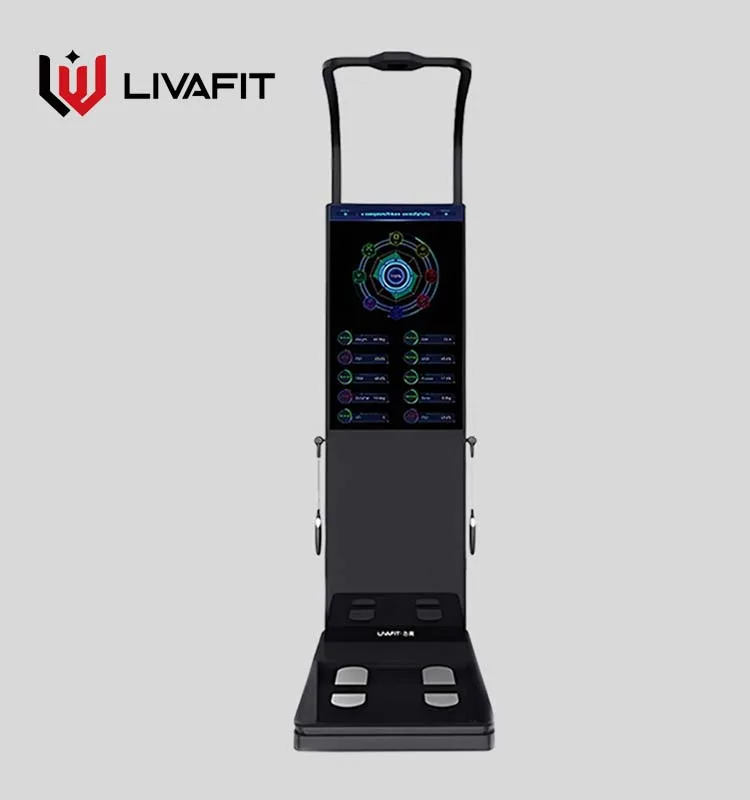

32-inch UHD Full Touchscreen Experience–An ultra-high-definition screen paired with an upgraded UI system offers more three-dimensional data display and more intuitive operation, providing users with an immersive measurement experience.
Imported High-Sensitivity Measurement Chip–Utilizing professional-grade sensing elements, it captures minute changes in the body’s electrical signals, significantly improving testing accuracy and ensuring consistent reliability in every measurement.

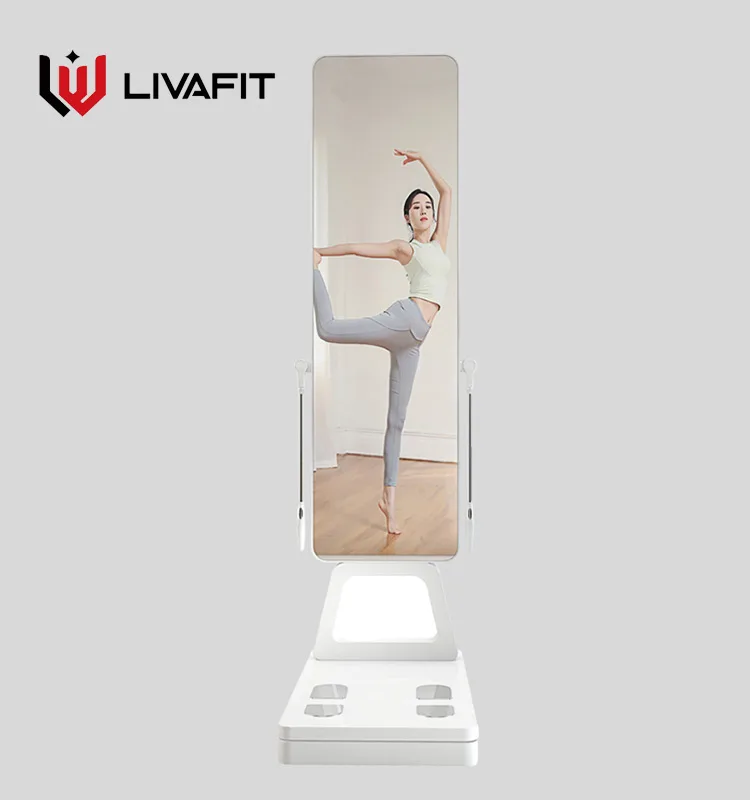

Industrial Aesthetic Design–Featuring a large tempered glass load-bearing platform and a high-gloss paint finish across the entire machine, combined with integrated ergonomic armrests, it presents a high-end and stable flagship-level feel.
Full-domain intelligent network interconnection–Supports high-speed wired and stable wireless dual-mode networking, and measurement data can be instantly synchronized to the cloud or local system to build an efficient digital management process.
Body Segmental Analyzer Core Parameters |
|||||||
| Power Supply Voltage | Input Voltage: AC 220V, 50/60Hz Output Voltage: DC 12V, 5A |
||||||
| Transmission Ports | USB 3.0 / Bluetooth / Wired / Wireless | ||||||
| Height input range | 100–200 cm | ||||||
| Test weight range | 0–250 kg | ||||||
| Test age | 3-99 years old | ||||||
| Storage Environment | Temperature -20 to 70°C; Humidity must not exceed 95% | ||||||
| Operating Environment | Requires internet connection Temperature: 10–40°C Humidity: 30–75% *Do not place the device near windows, avoid direct sunlight *Do not expose the device screen to direct bright light *Do not strike the device forcefully |
||||||
| Test Data | Body Weight，Body Mass Index，Body Fat Percentage，Skeletal Muscle，Minerals，Subcutaneous Fat，Visceral Fat，Protein，Body Water，Body Fat，Bone Mineral，Segmental Fat，Segmental Muscle，Body Age，Body Shape Assessment，Basal Metabolic Rate，Ideal Body Weight，Weight Management Recommendations，Posture Risk Assessment，Uneven Shoulders，X/O-Leg ，Anterior Pelvic Tilt，Head Tilt，Forward Head Posture，Body Circumference Measurement，Headto-Body Ratio，Upper Body Length，Lower Body Length，Thigh Length，lower-leg Length，Shoulder Width，Arm Span，Occipitalshoulder Distance | ||||||
Body Segmental Analyzer Equipment Parameters |
|||||||
| Measurement Method | 8-point contact electrodes, multi-band bioelectrical impedance analysis technology | ||||||
| Supported Networks | Wired/wireless compatible | ||||||
| Measurement Frequencies | 5, 20, 50, 100, 250 kHz | ||||||
| Measuring current | Within 280μA | ||||||
| Power consumption | 60W | ||||||
| Report Type: | Support A4 Paper Report Pinting/Mobile Terminal H5/E-mail/Back End Management System Viewing | ||||||
| Device dimensions | 1650mm(H) *400mm (W) *830mm (L) | ||||||
| Equipment Weight | 60kg | ||||||
| Packaging Dimensions | Main Unit: 1800mm (L) × 190mm (W) ×585mm (H) Base: 945mm (L) × 190mm (W) × 525mm(H) |
||||||
| Screen Type | 1920×1080 IPS HD Capacitive Touchscreen | ||||||
Providing comprehensive mobile testing solutions for professional body composition assessment.
Professional-grade sensors, AI health algorithms, and intelligent data management platform.

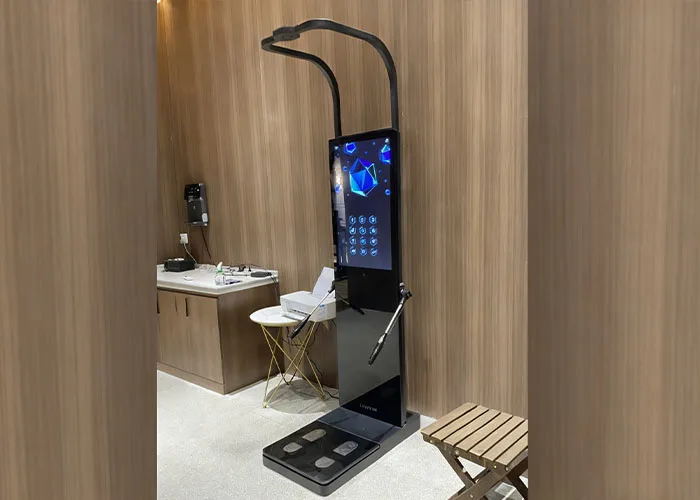

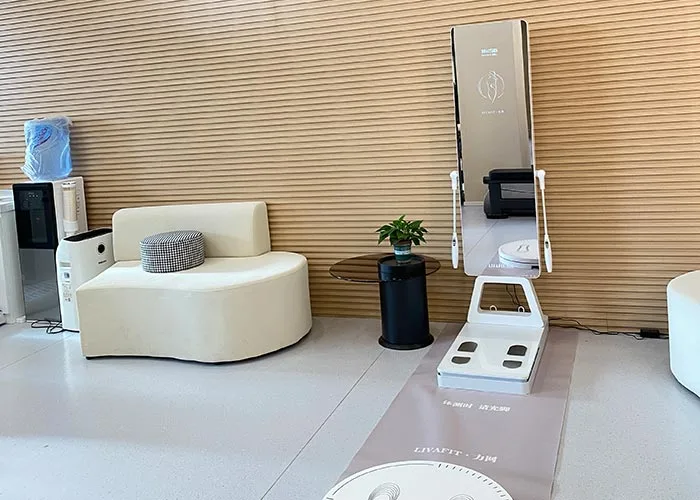

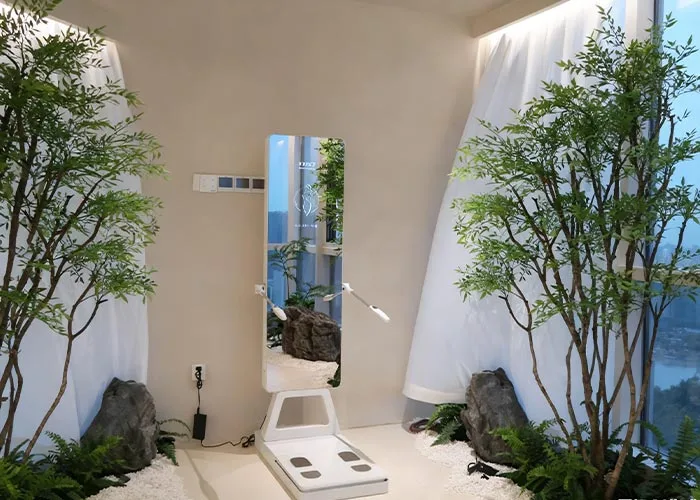

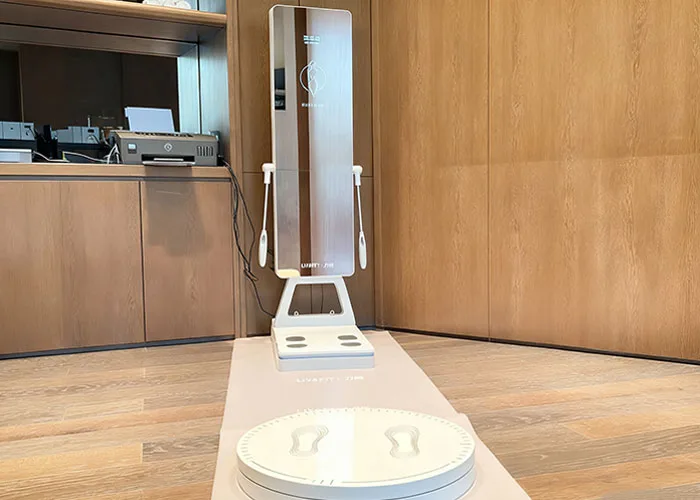

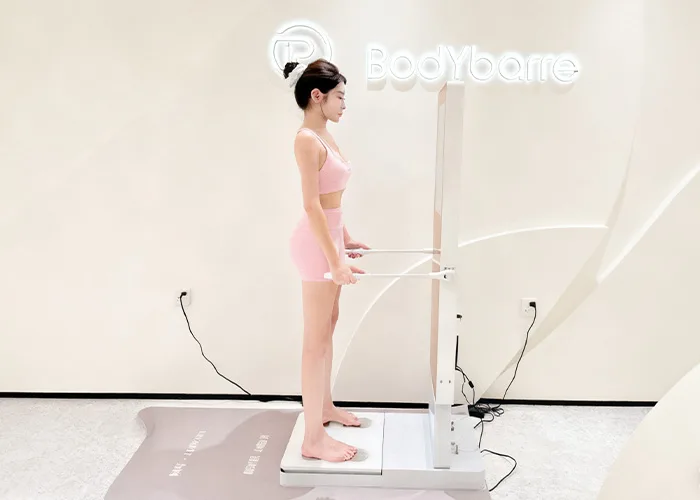

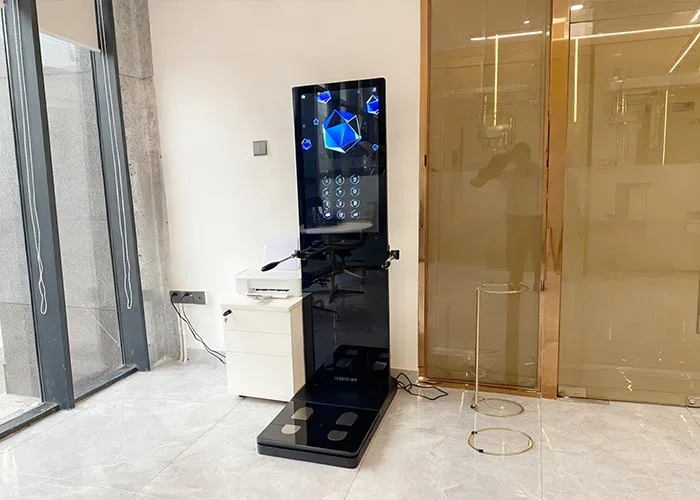

Used for health services in physical examination institutions, fitness centers, and health programs.
Help users achieve digital and intelligent health management anytime and anywhere.

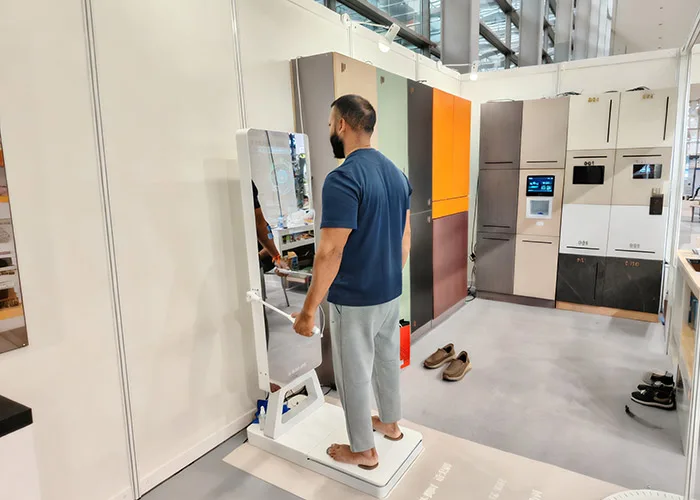

On-site demonstration of innovative physical testing equipment, focusing on new trends in smart health.
